Fusion Splicer
Fusion splicing is the process of fusing or welding two fibers together usually by an electric arc. Fusion splicing is the most widely used method of splicing as it provides for the lowest loss and least reflectance, as well as providing the strongest and most reliable joint between two fibers. Virtually all singlemode splices are fusion. Multimode fibers can be harder to fusion splice as the larger core with many layers of glass that produces the graded-index profile are sometimes harder to match up, especially with fibers of different types or manufacturers. Fusion splicing may be done one fiber at a time or a complete riber ribbon from ribbon cable at one time..

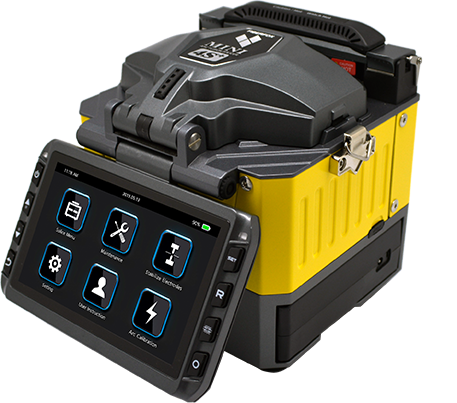

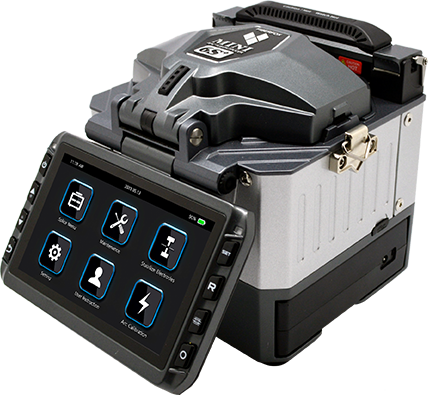

Mini6S+
Hign – End Core Alignment Fusion Splicer
·0.02dB
·Splicer 4 sec
·LED Injection
·1.5 kg
·300 cycles
CHARACTERISTIC
Heating Time
10sec
Splice Time
4sec / Electrode Lifespan : 5,500 arcs
LED Injection
300 cycles (splicing & heating)
with Two Batteries
Full Touch Screen
GUI Interface with Tempered Glass
SOC Compatible
TECHNICAL DETAIL
DURABILITY
Stable Splicing Loss under Any Environment

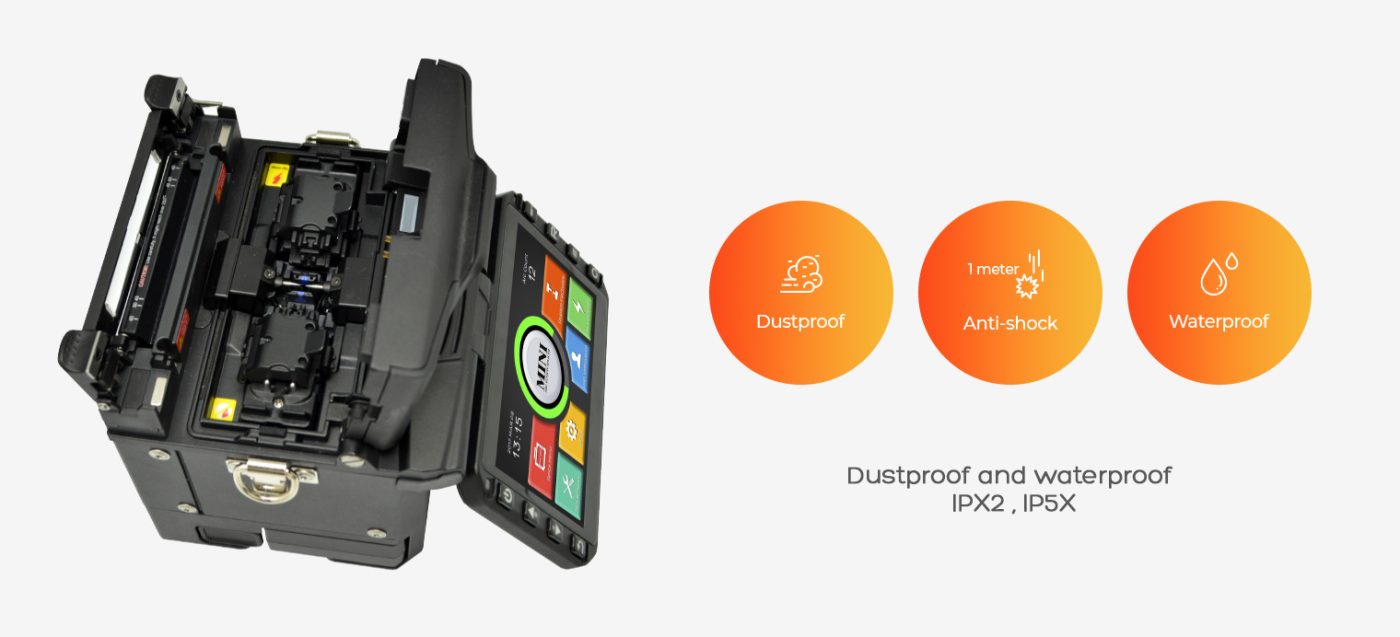

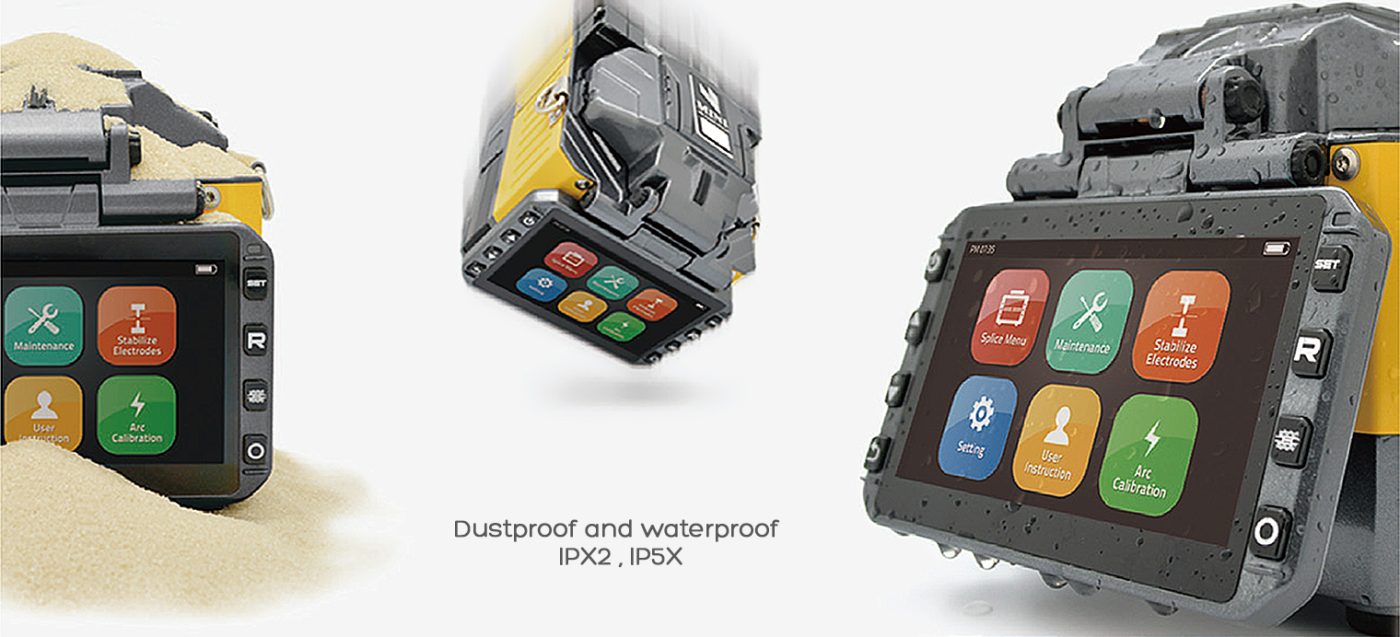

WATERPROOF , ANTI-SHOCK, DUSTPROOF
Elevation 0~5000meter
The max wind speed 15m/s
Temperature -15~60℃
Relative humidity 0~95%

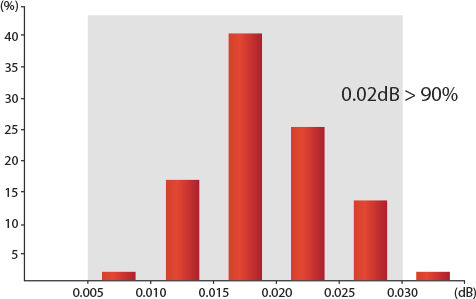

PERFORMANCE
Perfect performance under any environmantal conditions

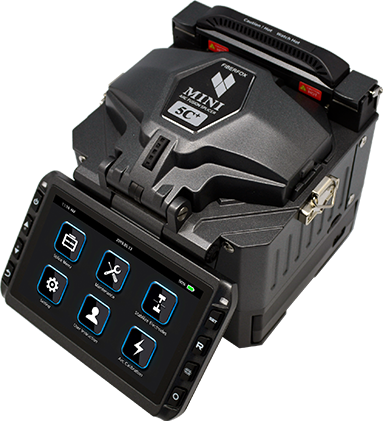

Mini5C+
Core Alignment Fusion Splicer
·0.02dB
·Splicer 4 sec
·Heating 10 sec
·LED Injection
·1.4 kg
·300 cycles
CHARACTERISTIC
Heating Time
10sec
Splice Time
4sec / Electrode Lifespan : 5,500 arcs
LED Injection
300 cycles (splicing & heating)
with Two Batteries
Full Touch Screen
GUI Interface with Tempered Glass
SOC Compatible
TECHNICAL DETAIL
DURABILITY
Stable Splicing Loss under Any Environment

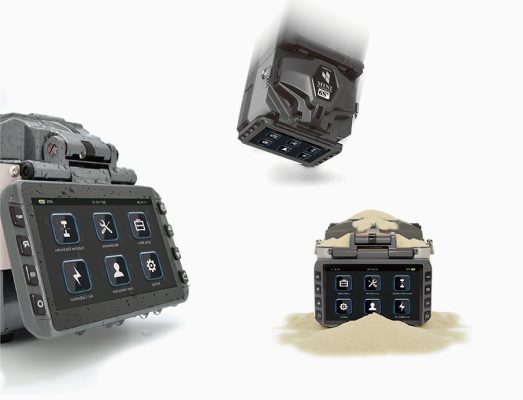

WATERPROOF , ANTI-SHOCK, DUSTPROOF
Elevation 0~5000meter
The max wind speed 15m/s
Temperature -15~60℃
Relative humidity 0~95%

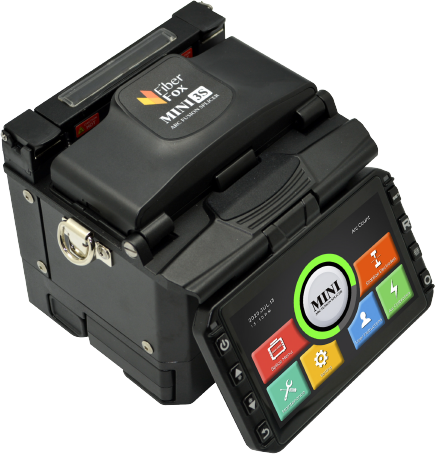

Mini4S+
Active Alignment Splicer
·0.03dB
·Splicer 6 sec
·Heating 10 sec
·LED Injection
·1.4 kg
·600 cycles
CHARACTERISTIC
Heating Time
10sec
Splice Time
4sec / Electrode Lifespan : 5,500 arcs
LED Injection
600 cycles (splicing & heating)
with Two Batteries
Full Touch Screen
GUI Interface with Tempered Glass
SOC Compatible
DURABILITY
Stable Splicing Loss under Any Environment
WATERPROOF , ANTI-SHOCK, DUSTPROOF
Elevation 0~5000meter
The max wind speed 15m/s
Temperature -15~60℃
Relative humidity 0~95%

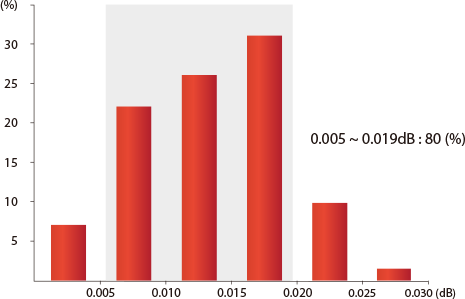

PERFORMANCE
Perfect performance under any environmantal conditions

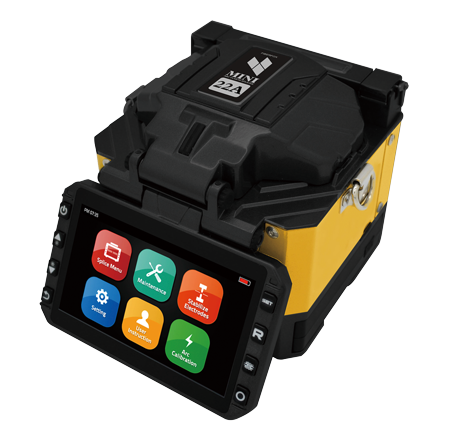

Mini22A
4Motors Active Alignment Splicer
·0.03dB
·Splicing 6 sec
·1.4 kg
·600 cycles
CHARACTERISTIC
Heating Time
10sec
SOC Compatible
The Fast Splicing Time
Quick: 6 Sec. / SM Mode: 8 Sec.
Universial Holder
250㎛ / 900㎛ / 2~3Ф / Indoor
Full Touch Screen
GUI Interface with Tempered Glass
Optional product Work Table Bag
TECHNICAL DETAIL

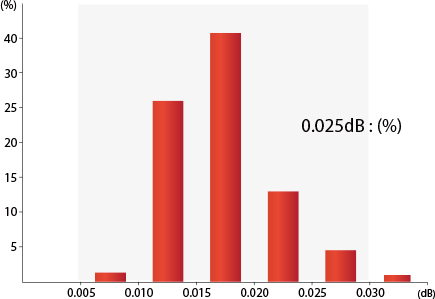

PERFORMANCE
Perfect performance under any environmantal conditions
Mini3S
4Motor Active Alignment Splicer
·0.03 dB
·Splicing 7 sec
·1.1 kg
·200 cycles
·LED Injection
CHARACTERISTIC
Heating Time
18sec with 60mm sleeve
SOC Compatible
Integrated V-groove on machine
LED Injection
Full Touch Screen
GUI Interface with Tempered Glass
Op3000mAh Battery is included
200 cycles (splicing & heateing)
TECHNICAL DETAIL
PERFORMANCE
Perfect performance under any environmantal conditions

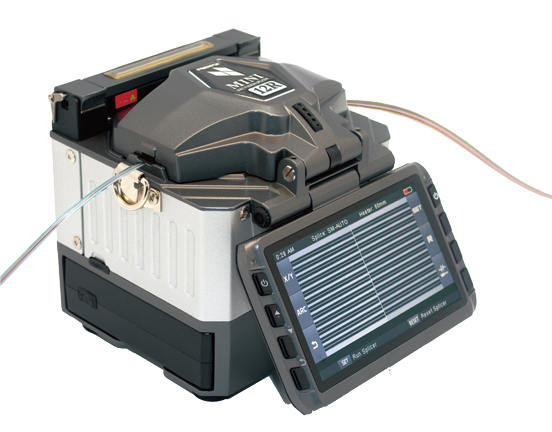

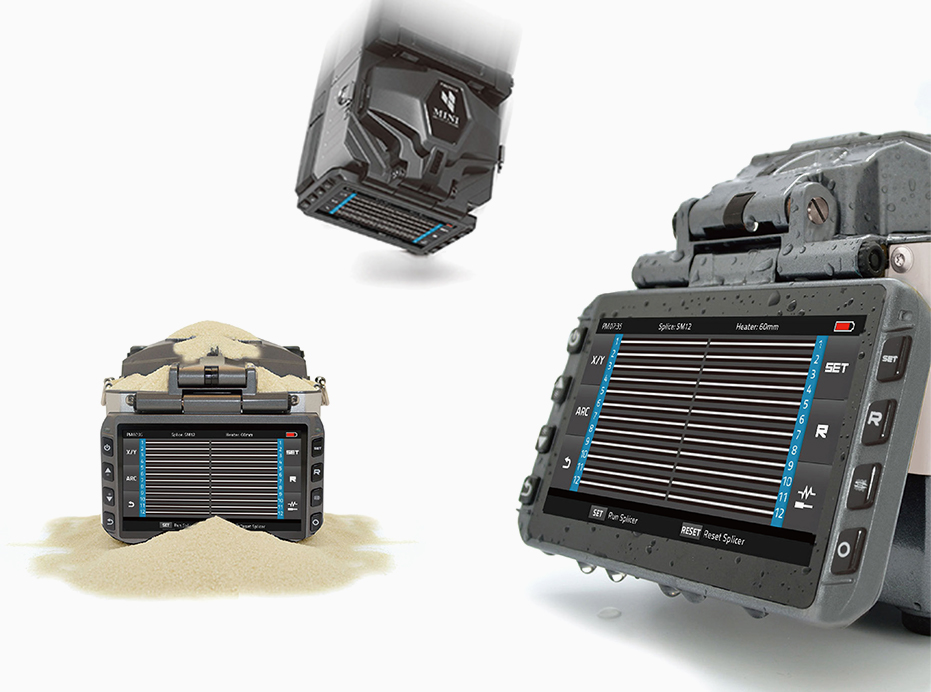

Mini12R+
The Smallest Ribbon Splicer
·0.05dB
·Splicing 15 sec
·1.32 kg
·300 cycles
CHARACTERISTIC
Heating Time
20 sec
The Fast Splicing Time
15sec
MPO SOC Compatible
Thermal Fiber Stripper
MiniHS-12
Full Touch Screen
GUI Interface with Tempered Glass
O600 cycles (splicing & heating)
with Two Batteries
TECHNICAL DETAIL
